例

  • 目标

    • 理解标准IP访问控制列表的原理及功能；
    • 掌握编号的标准IP访问控制列表的配置方法；

  • 背景

    • 你是公司的网络管理员，公司的经理部、财务部门和销售部分别属于不同的3个网段，三部门之间用路由器进行信息传递，为了安全起见，公司领导要求销售部门不能对财务部进行访问，但经理部可以对财务部进行访问。
    • PC1代表经理部的主机、PC2代表销售部的主机、PC3代表财务部的主机。

  • 原理

    • ACLS的全称为接入控制列表（Access Control Lists），也称为访问列表（Access Lists），俗称为防火墙，在有的文档中还称之为包过滤。
    • ACLs通过定义一些规则对网络设备接口上的数据报文进行控制：允许通过或丢弃，从而提高网络可管理性和安全性；IP ACL分为两种：标准IP访问列表和扩展IP访问列表，编号范围分别为1~99、1300~1999，100~199、2000~2699；
    • 标准 IP访问列表可以根据数据包的源IP地址定义规则，进行数据包的过滤；
    • 扩展/高级 IP访问列表可以根据数据包的源IP、目的IP、源端口、目的端口、协议来定义规则，进行数据包的过滤；
    • IP ACL基于接口进行规则的应用，分为：入栈应用和出栈应用；

  • 步骤

    ​ 13.1

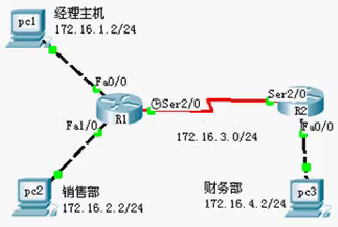

    • 新建packet tracer拓扑图（如图）
    • 路由器之间通过V.35电缆通过串口连接，DCE端连接在R1上，配置其时钟频率64000；主机与路由器通过交叉线连接。
    • 配置路由器接口IP地址。
    • 在路由器上配置静态路由协议，让三台pc能相互ping通，因为只有在互通的前提下才能涉及到访问控制列表。
    • 在R1上配置编号的IP标准访问控制
    • 将标准IP访问列表应用到接口
    • 验证主机之间的互通性

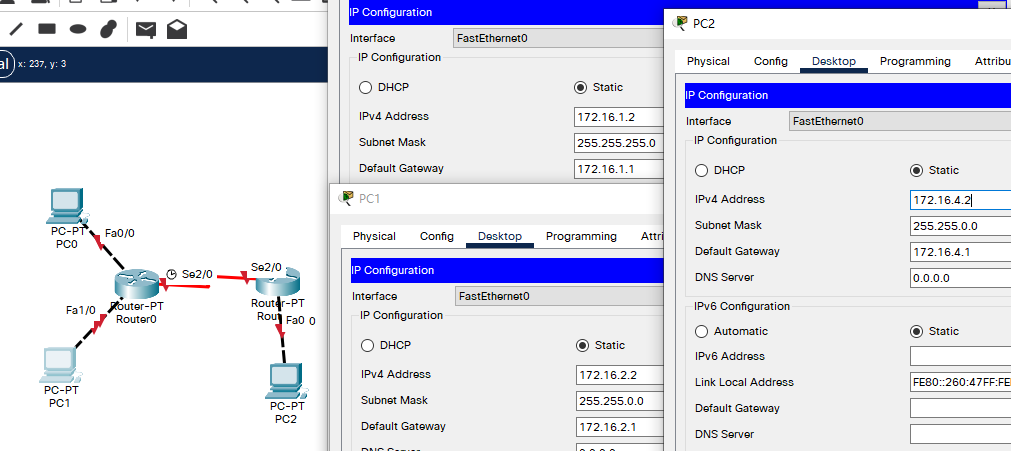

拓扑与主机IP配置

13.2

  • PC0 ~ R0 1.0 网段
  • PC1 ~ R0 2.0 网段
  • R0 ~ R1 3.0网段
  • PC2 ~ R1 4.0网段

R/S IP(/Clock) 配置

  • R0

    Router>en
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#host R0
R0(config)#int fa 0/0
R0(config-if)#ip add 172.16.1.1 255.255.255.0
R0(config-if)#no shut

R0(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

R0(config-if)#int fa 1/0
R0(config-if)#ip add 172.16.2.1 255.255.255.0
R0(config-if)#no shut

R0(config-if)#
%LINK-5-CHANGED: Interface FastEthernet1/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0, changed state to up

R0(config-if)#int s 2/0
R0(config-if)#ip add 172.16.3.1 255.255.255.0
R0(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
R0(config-if)#clock rate 64000

  • R1

    Router>en
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#host R1
R1(config)#int s 2/0
R1(config-if)#ip add 172.16.3.2 255.255.255.0
R1(config-if)#no shut

R1(config-if)#
%LINK-5-CHANGED: Interface Serial2/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up

R1(config-if)#int fa 0/0
R1(config-if)#ip add 172.16.4.1 255.255.255.0
R1(config-if)#no shut

R1(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

配置静态路由

  • R0

    R0(config)#ip route 172.16.4.0 255.255.255.0 172.16.3.2

  • R1 可做缺省路由

    R1(config)#ip route 0.0.0.0 0.0.0.0 172.16.3.1
R1(config)#end
R1#
%SYS-5-CONFIG_I: Configured from console by console

R1#show ip rou
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
       * - candidate default, U - per-user static route, o - ODR
       P - periodic downloaded static route

Gateway of last resort is 172.16.3.1 to network 0.0.0.0

     172.16.0.0/24 is subnetted, 2 subnets
C       172.16.3.0 is directly connected, Serial2/0
C       172.16.4.0 is directly connected, FastEthernet0/0
S*   0.0.0.0/0 [1/0] via 172.16.3.1

测试连通性

  • PC0 ~ PC4

    C:\>ipconfig

FastEthernet0 Connection:(default port)

   Connection-specific DNS Suffix..:
   Link-local IPv6 Address.........: FE80::206:2AFF:FEEB:9BE6
   IPv6 Address....................: ::
   IPv4 Address....................: 172.16.1.2
   Subnet Mask.....................: 255.255.255.0
   Default Gateway.................: ::
                                     172.16.1.1

C:\>ping 172.16.4.2

Pinging 172.16.4.2 with 32 bytes of data:

Request timed out.
Reply from 172.16.4.2: bytes=32 time=1ms TTL=126
Reply from 172.16.4.2: bytes=32 time=1ms TTL=126
Reply from 172.16.4.2: bytes=32 time=9ms TTL=126

Ping statistics for 172.16.4.2:
    Packets: Sent = 4, Received = 3, Lost = 1 (25% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 9ms, Average = 3ms

  • PC1 ~ PC4

    C:\>ipconfig

FastEthernet0 Connection:(default port)

   Connection-specific DNS Suffix..:
   Link-local IPv6 Address.........: FE80::201:42FF:FE8E:CACE
   IPv6 Address....................: ::
   IPv4 Address....................: 172.16.2.2
   Subnet Mask.....................: 255.255.0.0
   Default Gateway.................: ::
                                     172.16.2.1

C:\>ping 172.16.4.2

Pinging 172.16.4.2 with 32 bytes of data:

Reply from 172.16.4.2: bytes=32 time=1ms TTL=126
Reply from 172.16.4.2: bytes=32 time=7ms TTL=126
Reply from 172.16.4.2: bytes=32 time=6ms TTL=126
Reply from 172.16.4.2: bytes=32 time=1ms TTL=126

Ping statistics for 172.16.4.2:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 7ms, Average = 3ms

配置基本访问控制列表

  • 目标：PC0 可访问 PC2，PC1 不可访问 PC2

  • 控制方式：命名或编号，此处使用命名方式

  • R0

    • 配置访问控制列表

      R0(config)#ip acc
R0(config)#ip access-list ?
  extended  Extended Access List
  standard  Standard Access List
R0(config)#ip access-list st
R0(config)#ip access-list standard ?
  <1-99>  Standard IP access-list number
  WORD    Access-list name
R0(config)#ip access-list standard name1
R0(config-std-nacl)#permit ?
  A.B.C.D  Address to match
  any      Any source host
  host     A single host address
R0(config-std-nacl)#permit 172.16.1.0 ?
  A.B.C.D  Wildcard bits
  <cr>
R0(config-std-nacl)#permit 172.16.1.0 0.0.0.255
R0(config-std-nacl)#deny 172.16.2.0 0.0.0.255		! 写了上面那条之后，默认其他全部拒绝
R0(config-std-nacl)#end

    • 应用访问控制列表

      • 编号模式 1 - 99 为基本访问控制列表，100 - 199 是高级访问控制列表，还可通过命名方式。
      R0(config)#int s 2/0
R0(config-if)#ip ?
  access-group        Specify access control for packets
  address             Set the IP address of an interface
  authentication      authentication subcommands
  flow                NetFlow Related commands
  hello-interval      Configures IP-EIGRP hello interval
  helper-address      Specify a destination address for UDP broadcasts
  inspect             Apply inspect name
  ips                 Create IPS rule
  mtu                 Set IP Maximum Transmission Unit
  nat                 NAT interface commands
  ospf                OSPF interface commands
  split-horizon       Perform split horizon
  summary-address     Perform address summarization
  virtual-reassembly  Virtual Reassembly
R0(config-if)#ip access-group name1 ?					!入站还是出站
  in   inbound packets
  out  outbound packets
R0(config-if)#ip access-group name1 out

测试

  • PC0 ping PC2

    C:\>ping 172.16.4.2

Pinging 172.16.4.2 with 32 bytes of data:

Reply from 172.16.4.2: bytes=32 time=16ms TTL=126
Reply from 172.16.4.2: bytes=32 time=1ms TTL=126
Reply from 172.16.4.2: bytes=32 time=2ms TTL=126
Reply from 172.16.4.2: bytes=32 time=3ms TTL=126

Ping statistics for 172.16.4.2:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 1ms, Maximum = 16ms, Average = 5ms

  • PC1 ping PC2

    C:\>ping 172.16.4.2

Pinging 172.16.4.2 with 32 bytes of data:

Reply from 172.16.2.1: Destination host unreachable.
Reply from 172.16.2.1: Destination host unreachable.
Reply from 172.16.2.1: Destination host unreachable.
Reply from 172.16.2.1: Destination host unreachable.

Ping statistics for 172.16.4.2:
    Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),
