Cisco NAT 配置
Cisco NAT 配置
R1>en
R1#conf t
R1(config)#ip nat inside source static 172.16.16.1 64.100.50.1

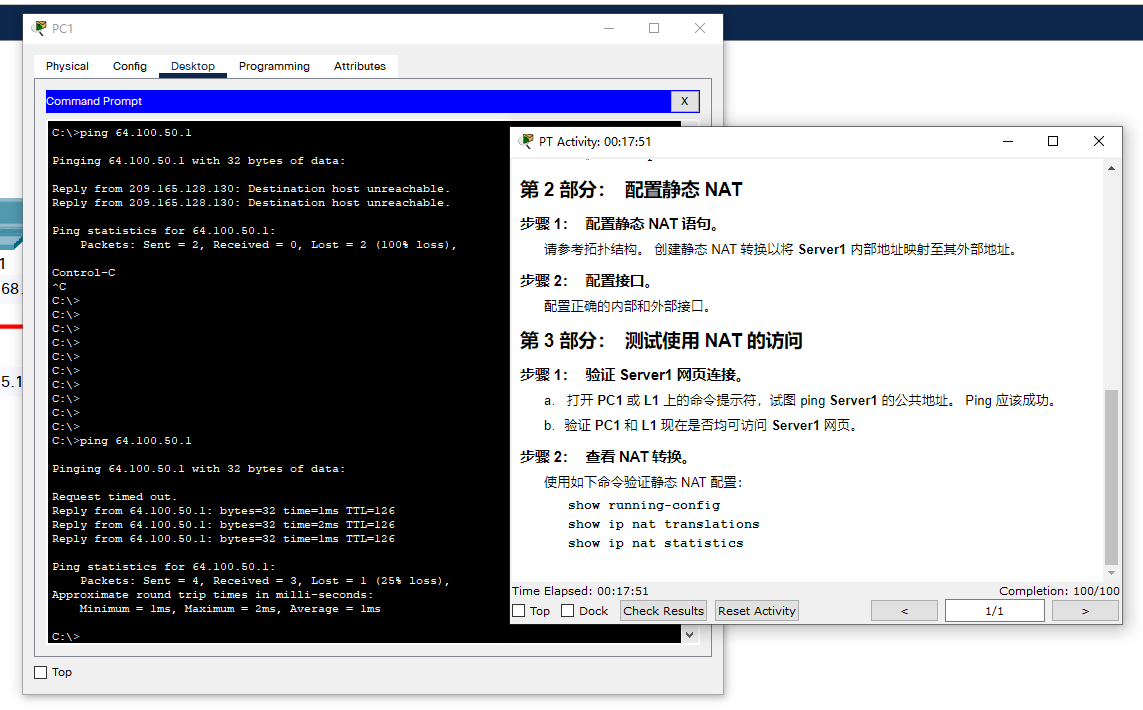

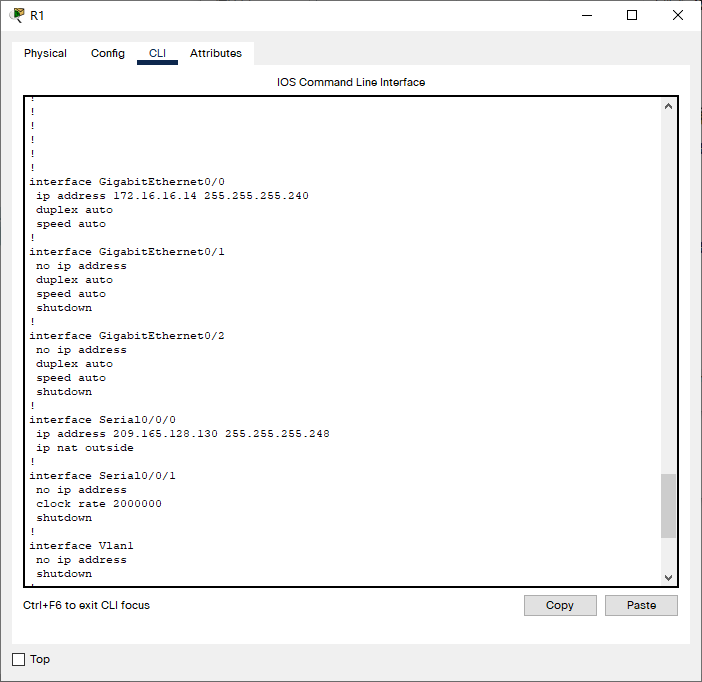

show run：
R1(config)#int s0/0/0
R1(config-if)#ip nat outside
R1(config)#int g0/0
R1(config-if)#ip nat ins
R1(config-if)#ip nat inside
NAT 网络地址转换

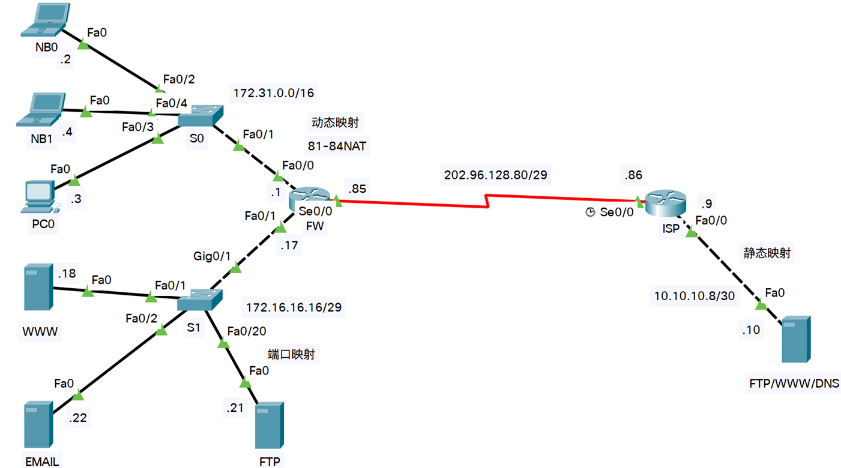

拓扑及IP配置
S0 (FW)
Router(config)#host R0
R0(config)#int fa0/0
R0(config-if)#ip add 172.31.0.1 255.255.0.0 ?
<cr>
R0(config-if)#ip add 172.31.0.1 255.255.0.0
R0(config-if)#no shut
R0(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up
R0(config-if)#int fa1/0
R0(config-if)#ip add 172.16.16.17 255.255.255.248
R0(config-if)#no shut
R0(config-if)#
%LINK-5-CHANGED: Interface FastEthernet1/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0, changed state to up
R0(config-if)#int s2/0
R0(config-if)#ip add 202.96.128.85 255.255.255.248
R0(config-if)#no shut
R0(config-if)#clock rate 64000
%LINK-5-CHANGED: Interface Serial2/0, changed state to down
S1 (ISP)
Router(config)#host R1
R1(config)#int se2/0
R1(config-if)#ip add 202.96.128.86 255.255.255.248
R1(config-if)#no shut
R1(config-if)#clock rate 64000
R1(config-if)#int fa0/0
R1(config-if)#ip add 10.10.10.9 255.255.255.252
R1(config-if)#no shut
R1(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up
静态NAT配置
S1 (ISP)
R1(config)#int fa0/0
R1(config-if)#ip nat inside
R1(config-if)#int s2/0
R1(config-if)#ip nat outside
R1(config-if)#exit
R1(config)#ip nat inside source static 10.10.10.10 202.96.128.86
R1(config)#end

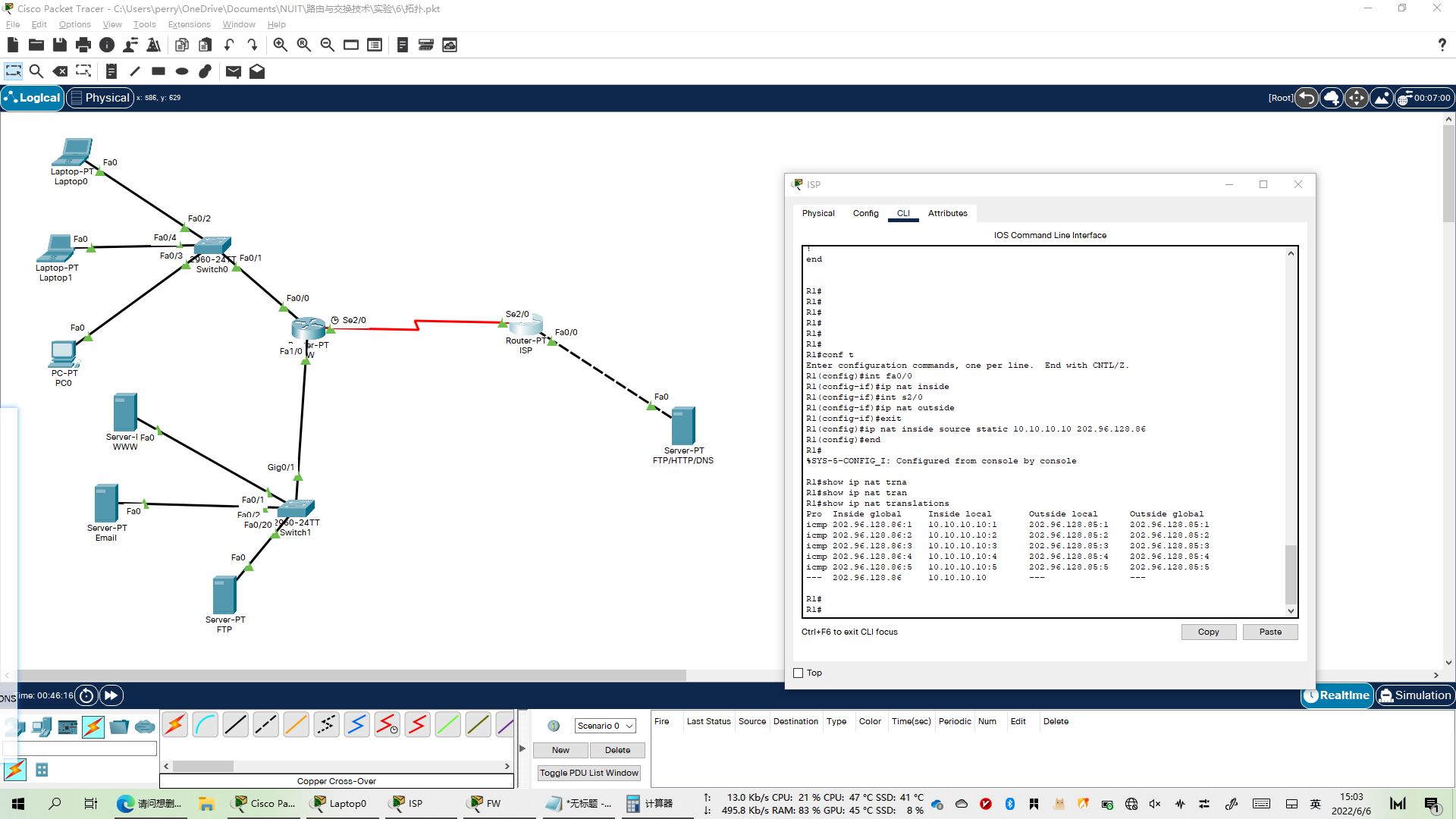

检测：
从 S0 ping S1(202.96.128.86)，然后在 S1 show ip nat trasnslations
R1#show ip nat translations
Pro Inside global Inside local Outside local Outside global
icmp 202.96.128.86:1 10.10.10.10:1 202.96.128.85:1 202.96.128.85:1
icmp 202.96.128.86:2 10.10.10.10:2 202.96.128.85:2 202.96.128.85:2
icmp 202.96.128.86:3 10.10.10.10:3 202.96.128.85:3 202.96.128.85:3
icmp 202.96.128.86:4 10.10.10.10:4 202.96.128.85:4 202.96.128.85:4
icmp 202.96.128.86:5 10.10.10.10:5 202.96.128.85:5 202.96.128.85:5
--- 202.96.128.86 10.10.10.10 --- ---
企业通过动态NAT上网
R0(config)#access-list 1 permit 172.31.0.0 0.0.255.255
R0(config)#ip nat pool ForInter 202.96.128.81 202.96.128.84 netmask 255.255.255.248
R0(config)#ip nat inside source list 1 pool ForInter
R0(config)#int fa0/0
R0(config-if)#ip nat inside
R0(config-if)#int fa1/0
R0(config-if)#ip nat inside
R0(config-if)#int s2/0
R0(config-if)#ip nat outside
R0(config-if)#end

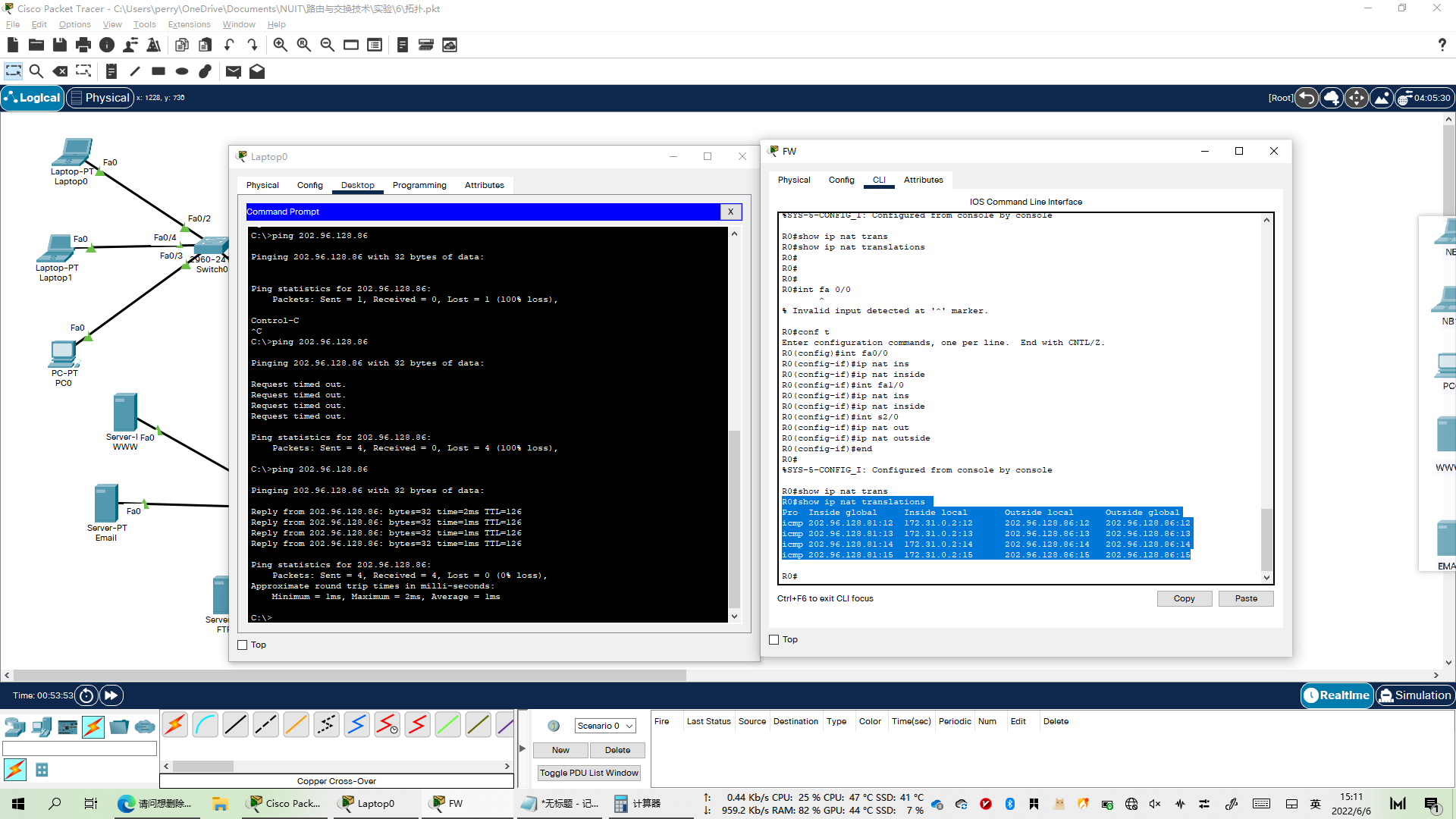

检测
在 Laptop0 ping ISP(202.96.128.86) ，然后到 FW 中 show ip nat translations
R0#show ip nat translations
Pro Inside global Inside local Outside local Outside global
icmp 202.96.128.81:12 172.31.0.2:12 202.96.128.86:12 202.96.128.86:12
icmp 202.96.128.81:13 172.31.0.2:13 202.96.128.86:13 202.96.128.86:13
icmp 202.96.128.81:14 172.31.0.2:14 202.96.128.86:14 202.96.128.86:14
icmp 202.96.128.81:15 172.31.0.2:15 202.96.128.86:15 202.96.128.86:15
企业服务器的 PAT端口转发
R0(config)#ip nat inside source static tcp 172.16.16.18 80 202.96.128.85 80
R0(config)#ip nat inside source static tcp 172.16.16.18 443 202.96.128.85 443
R0(config)#ip nat inside source static tcp 172.16.16.18 8080 202.96.128.85 80
R0(config)#ip nat inside source static udp 172.16.16.18 53 202.96.128.85 53
R0(config)#ip nat inside source static tcp 172.16.16.21 21 202.96.128.85 21
R0(config)#ip nat inside source static tcp 172.16.16.21 20 202.96.128.85 20
R0(config)#ip nat inside source static tcp 172.16.16.22 25 202.96.128.85 25
R0(config)#ip nat inside source static tcp 172.16.16.22 110 202.96.128.85 110

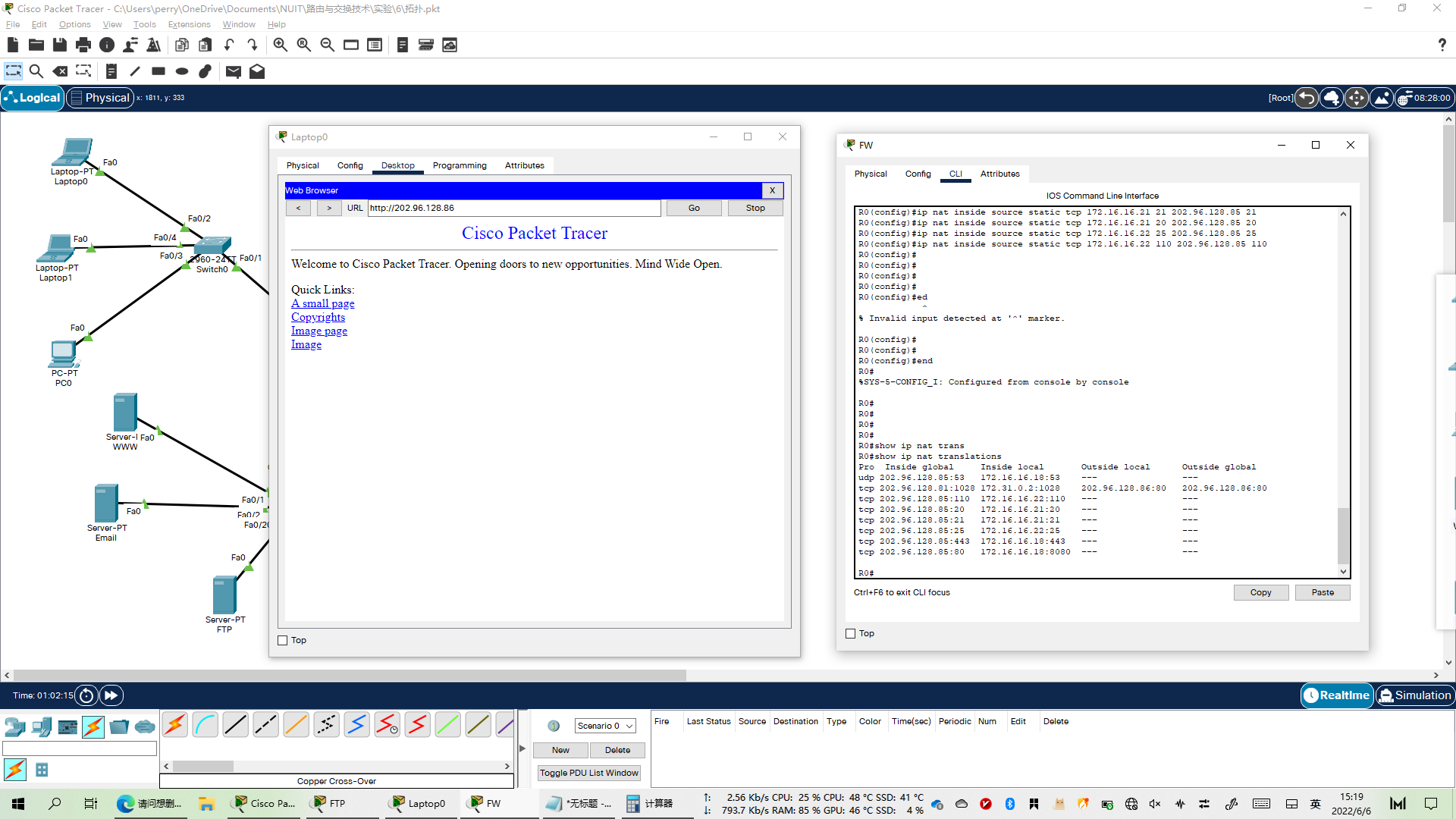

检测
从 Laptop0 使用各种服务访问 202.96.128.86， 然后到FW查看 ip nat translations
R0#show ip nat translations
Pro Inside global Inside local Outside local Outside global
udp 202.96.128.85:53 172.16.16.18:53 --- ---
tcp 202.96.128.81:1028 172.31.0.2:1028 202.96.128.86:80 202.96.128.86:80
tcp 202.96.128.85:110 172.16.16.22:110 --- ---
tcp 202.96.128.85:20 172.16.16.21:20 --- ---
tcp 202.96.128.85:21 172.16.16.21:21 --- ---
tcp 202.96.128.85:25 172.16.16.22:25 --- ---
tcp 202.96.128.85:443 172.16.16.18:443 --- ---
tcp 202.96.128.85:80 172.16.16.18:8080 --- ---
