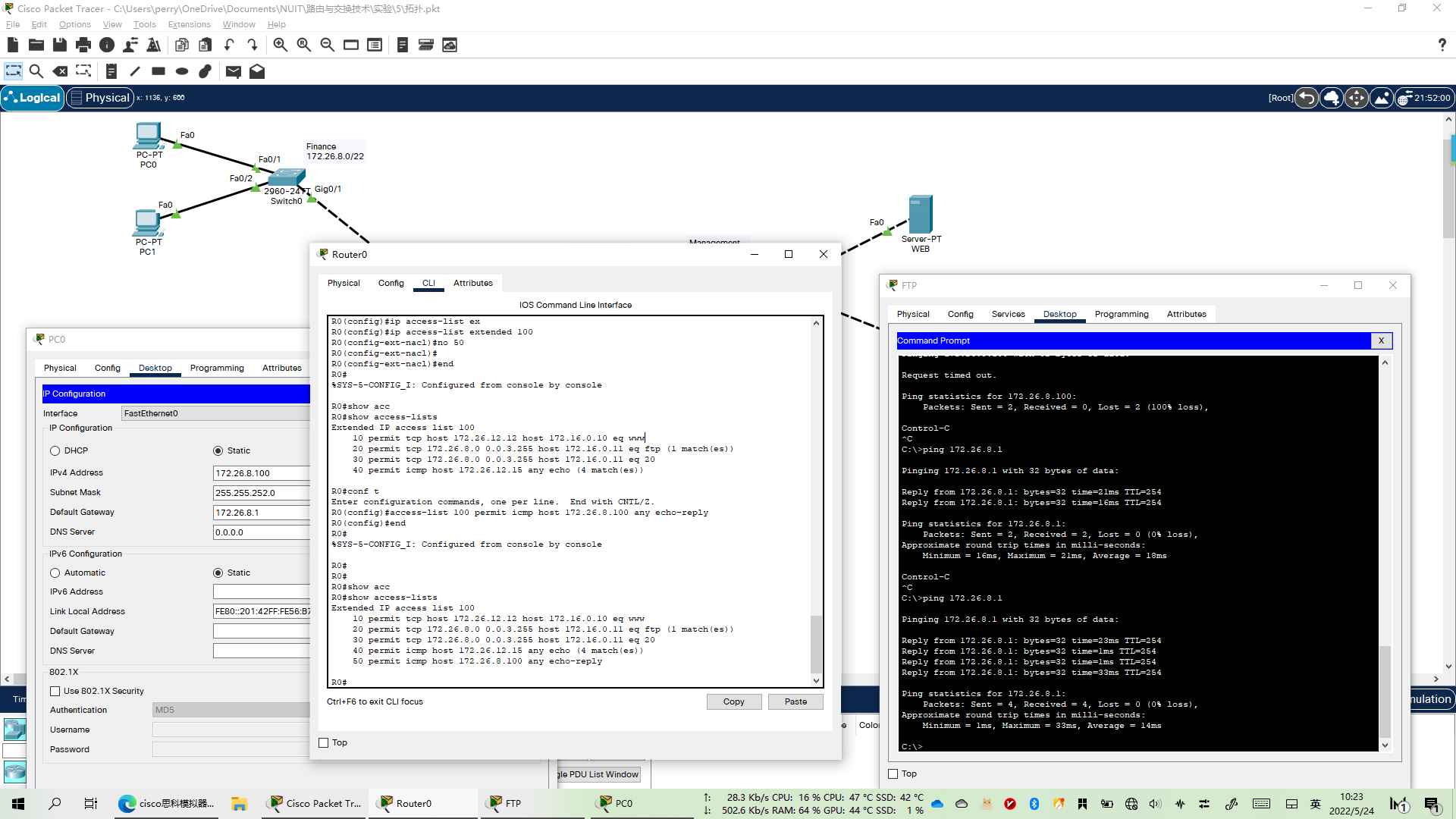

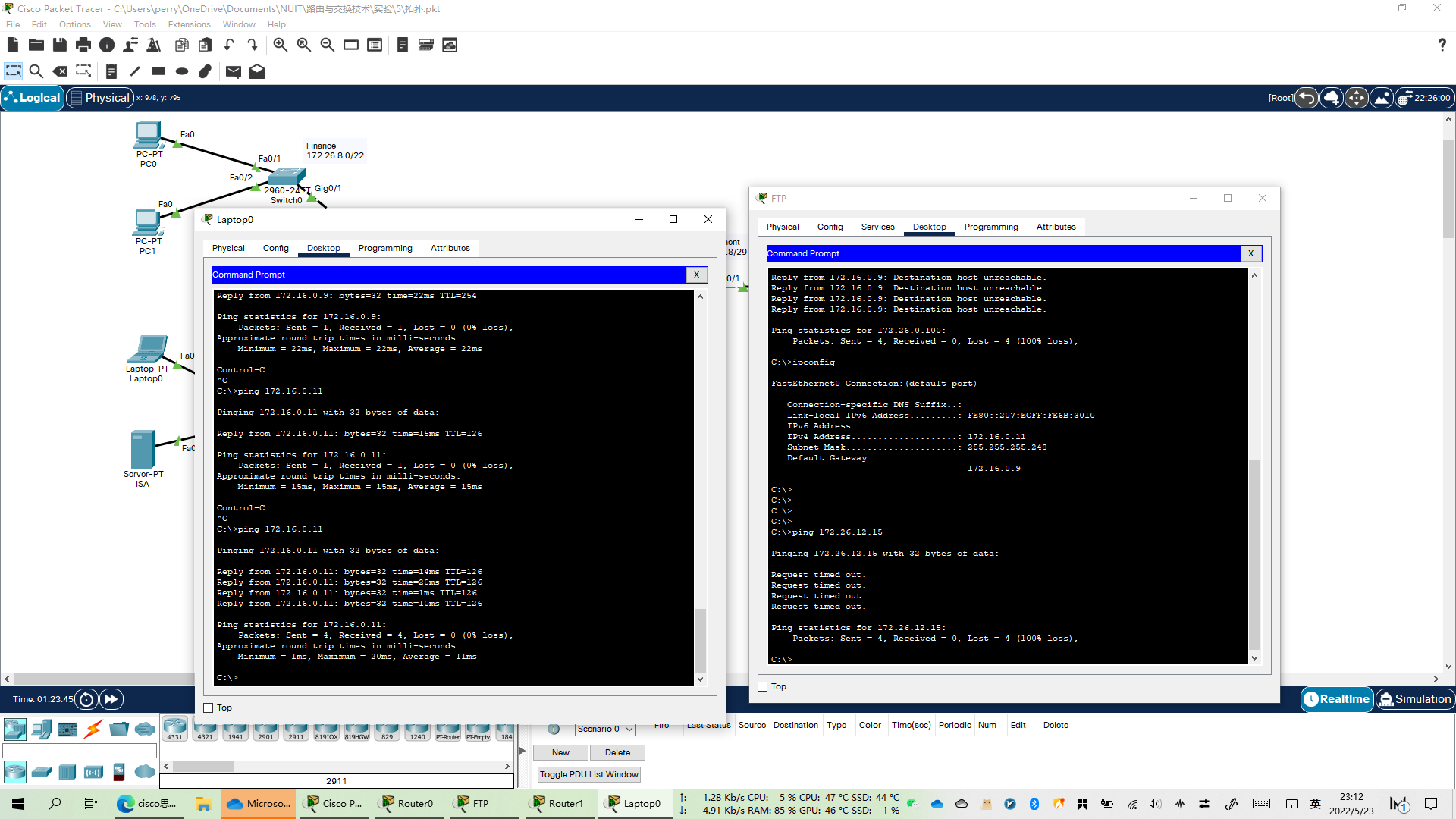

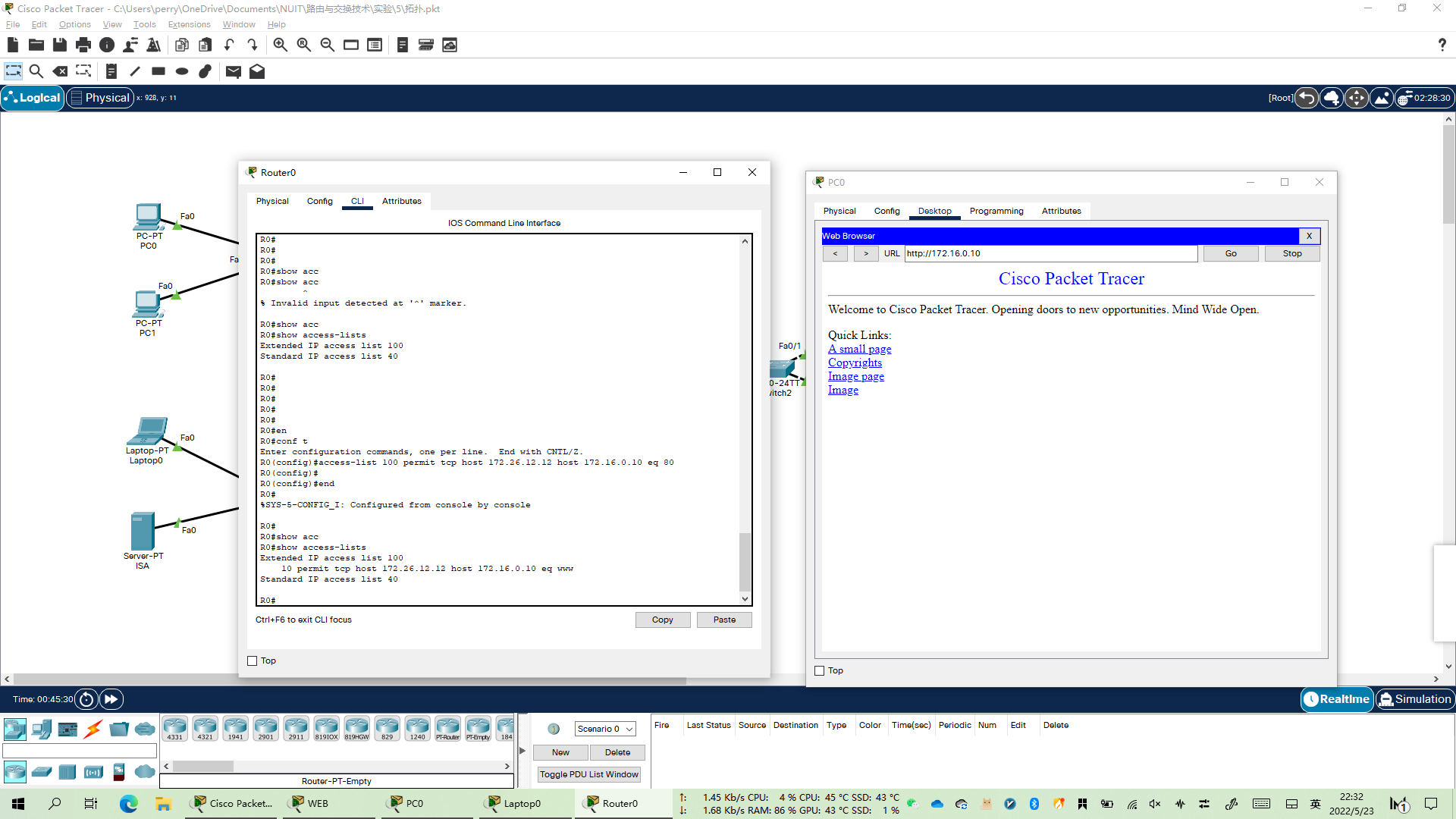

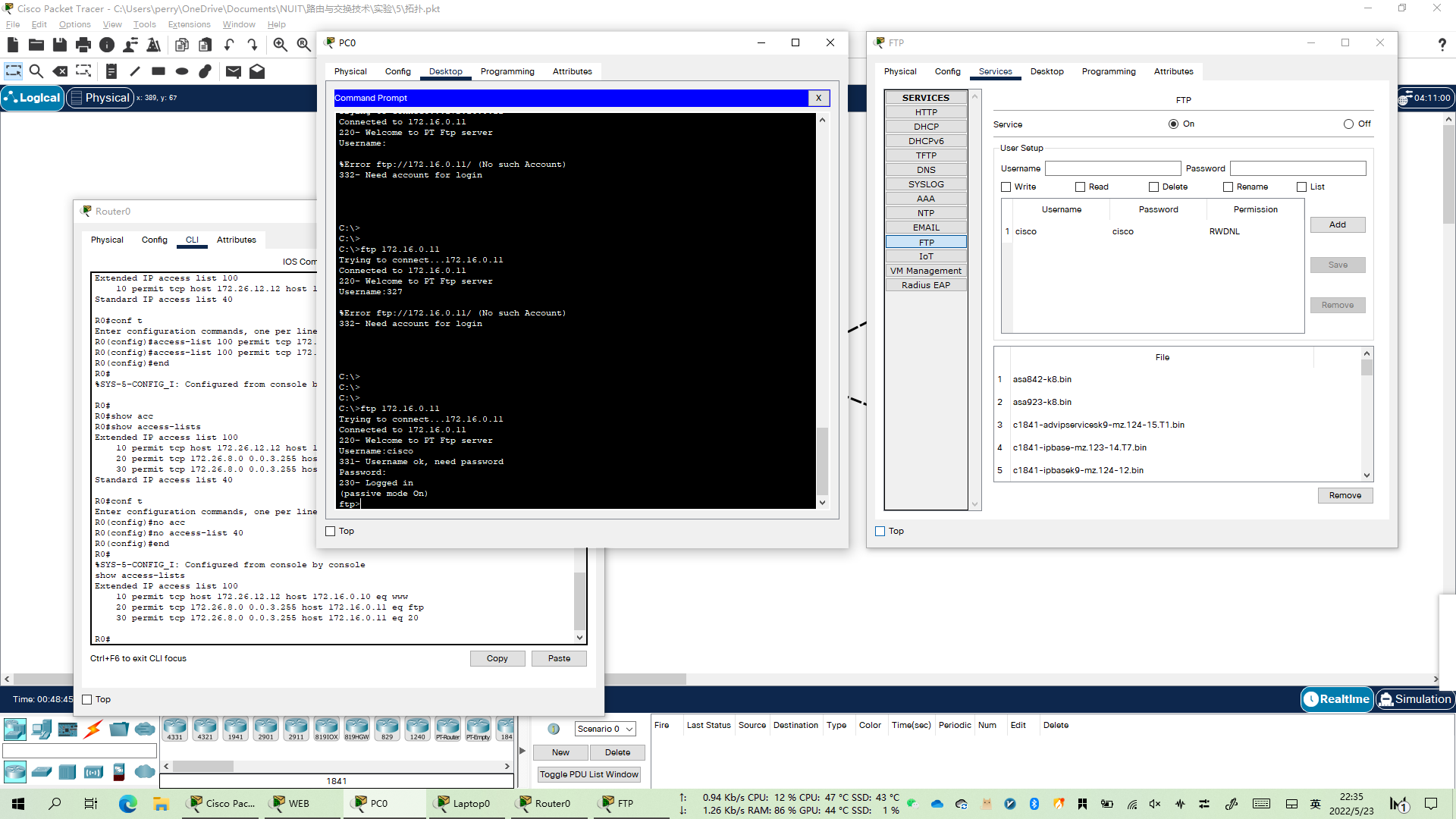

扩展 ACL
扩展 ACL
拓扑与IP配置

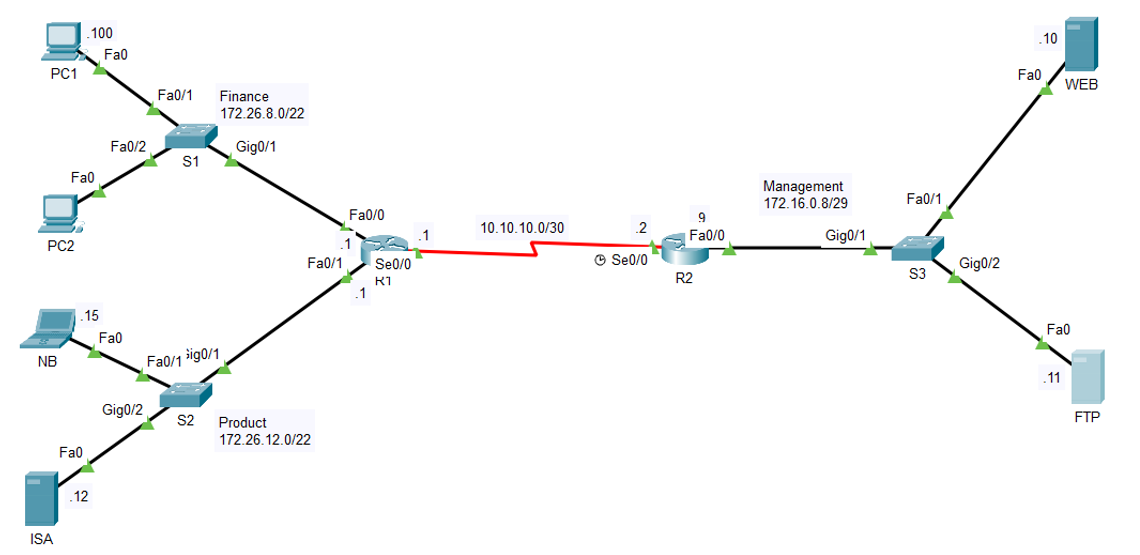

参考拓扑：

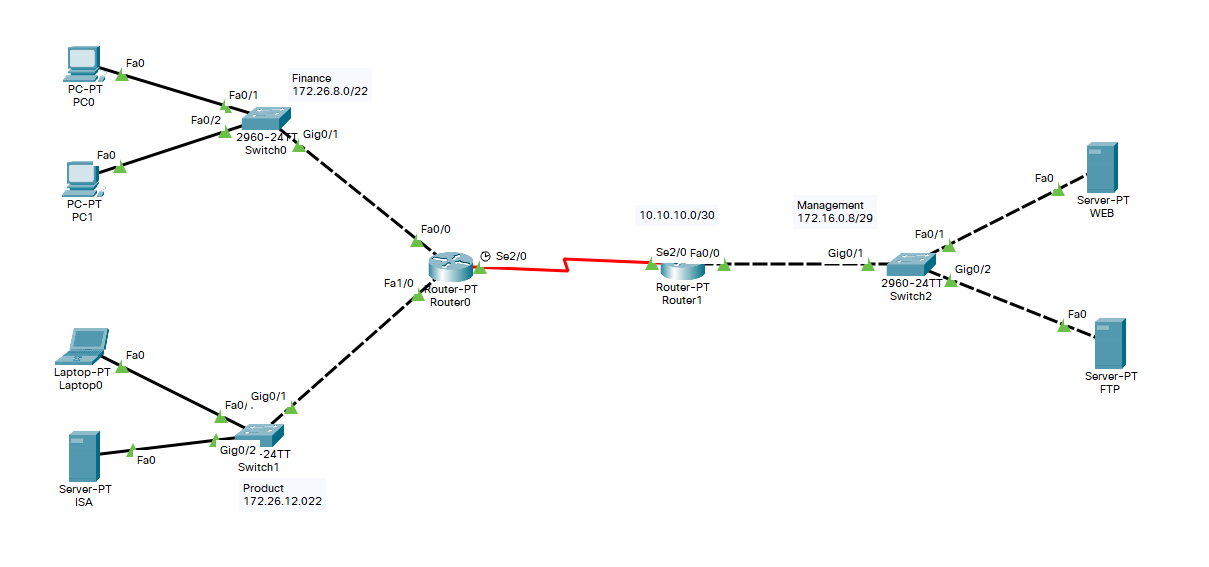

实际拓扑（IP与上述保留一致）：
Router0 配置
- 路由总结
R0(config)#ip route 172.26.8.0 255.255.248.0 s2/0
或
R0(config)#ip route 172.26.8.0 255.255.248.0 10.10.10.1
- 配置IP
R0(config)#int f0/0
R0(config-if)#ip add 172.26.8.1 255.255.252.0
R0(config-if)#no shut
R0(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up
R0(config)#int f1/0
R0(config-if)#ip add 172.26.12.0 255.255.252.0
Bad mask /22 for address 172.26.12.0
R0(config-if)#no shut
R0(config-if)#
%LINK-5-CHANGED: Interface FastEthernet1/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet1/0, changed state to up
R0(config)#int s2/0
R0(config-if)#ip add 10.10.10.1 255.255.255.252
R0(config-if)#no shut
%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router1 配置
- IP 配置
R1(config)#int s2/0
R1(config-if)#ip add 10.10.10.2 255.255.255.252
R1(config-if)#no shut
R1(config-if)#
%LINK-5-CHANGED: Interface Serial2/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface Serial2/0, changed state to up
R1(config-if)#int fa0/0
R1(config-if)#ip add 172.16.0.9 255.255.255.248
R1(config-if)#no shut
R1(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up
